STEEL FLOAT PANS
Built to last
- Manufactured with high grade steel to offer excellent life for both Walk-behind and Ride-on trowels
- Precision dish for super flat flooring and easy movement
- Covers larger area than float blades
- Supplied with “Z” clip or “Safety Clip”

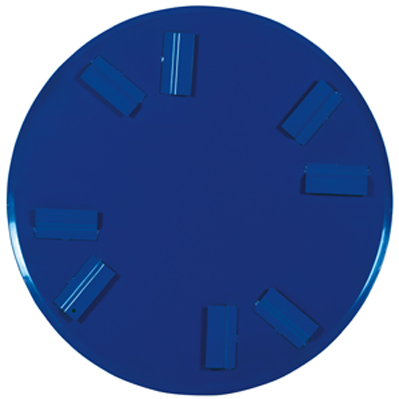

- Can be provided with or without painted pans
Specifications
| Product Code | Machine
Size |
Pan Size
mm |
Lip
Angle |
No of Brackets | Thickness of Pan (mm) | Weight~
Kg |
|
|---|---|---|---|---|---|---|---|
| NO PAINTED | PAINTED | ||||||
| 000224 | – | 60 cm | 600 | ~90 Edger | 4 | 2 | 5.20 |
| 000224B | – | 60 cm | 600 | ~90 Edger | 2 | 2 | 5.20 |
| 000225 | – | 75 cm | 750 | ~90 Edger | 4 | 2 | 7.80 |
| 000225C | – | 75 cm | 750 | ~90 Edger | 8 | 2 | 7.80 |
| 000225BG | – | 75 cm | 750 | ~45 | 2 | 2 | 7.80 |
| 000240NP | 000240 | 75 cm | 750 | ~45 | 4 | 2.5 | 9.80 |
| 000275NP | 000275 | 75 cm | 770 | ~45 | 4 | 2.5 | 10.00 |
| 00865NPDYN | 000865DYN | 86 cm | 865 | ~45 | 8 | 3 | 17.00 |
| 000221 | 000221P | 90 cm | 927 | ~45 | 4 | 2.5 | 16.50 |
| 000226 | 000226P | 90 cm | 942 | ~45 | 8 | 3 | 19.00 |
| 000226T | – | 95 cm | 950 | ~90 Edger | 8 | 3 | 19.00 |
| 000232 | 000232P | 98 cm | 980 | ~45 | 8 | 3 | 19.00 |
| 000498 | 000498P | 98 cm | 980 | ~45 | 8 | 4 | 23.00 |
| 000227 | 000227P | 120 cm | 1170 | ~45 | 8 | 3 | 28.00 |
| WH3011 | WH3010 | 120 cm | 1170 | ~45 | 10 | 3 | 28.00 |
| 0004117 | 0004117P | 120 cm | 1170 | ~45 | 8 | 4 | 34.00 |
| WH4121 | WH4120 | 120 cm | 1170 | ~45 | 10 | 4 | 34.00 |
| 000118 | 000118P | 120 cm | 1200 | ~45 | 8 | 3 | 28.00 |
| 000118/10 | 000118/10P | 120 cm | 1200 | ~45 | 10 | 3 | 28.00 |
| 000238 | 000238P | 120 cm | 1230 | ~45 | 8 | 3 | 29.50 |
| 000239 | 000239P | 120 cm | 1230 | ~45 | 10 | 3 | 29.50 |
| 000251 | 000251P | 150 cm | 1510 | ~45 | 6 | 3 | 48.00 |
| 000251/4 | – | 150 cm | 1510 | ~45 | 6 | 4 | 62.00 |
| 000255 | 000255P | 160 cm | 1585 | ~45 | 10 | 3 | 52.00 |
