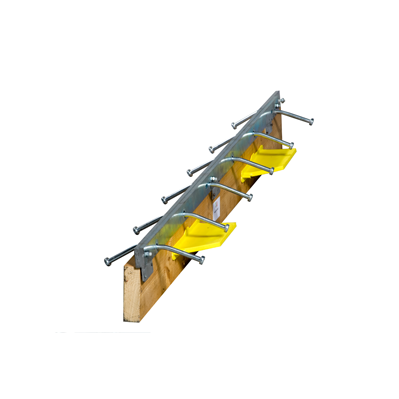

BETON STEEL JOINTS
Easy installation and flexibility
Features:
- Manufactured with high quality cold drawn steel suitable for free-movement areas
- Also available in galvanized steel, which ensures steel corrosion resistance and adds aesthetic values
- Dowels plates attached with Beton Steel Joints for efficient and safe transferring of the load between two adjacent concrete slabs
- Prevents vertical movement in concrete contraction situations
- Made in various sizes and used for various projects
Design:
- A. 100 X 10 mm Shear Stud for anchorage into concrete
- B. Fastening system for temporary holding of the steel during concrete placement
- C. Unique Dowel system, made with high grade 355N/mm² steel, in various types and designs
- D. 40 x 10 mm, Top plates, with high quality cold drawn steel. Also available in galvanized condition
- E. Plastic sleeve to release dowel into concrete
- F. Cold Rolled steel plate with various heights
Specifications
Beton Steel Joint Weight/3meter:
| Dowels Thickness | No of Dowels /3m | BETON STEEL JOINT SIZE | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 | ||
| 8 mm | 5 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 |
| 12 mm | 5 | 35.5 | 36.5 | 37.5 | 38.5 | 39.5 | 40.5 | 41.5 | 42.5 |
| 8 mm | 7 | 34.5 | 35.5 | 36.5 | 37.5 | 38.5 | 39.5 | 40.5 | 41.5 |
| 12 mm | 7 | 39.5 | 40.5 | 41.5 | 42.5 | 43.5 | 44.5 | 45.5 | 46.5 |
#Other Customized Steel Joints can be manufactured upon request
DOWELS:
- Dowels are the most integral part of a steel joint
- Unique design made with high Grade 355N/mm² steel for superior load transfer
- Provides maximum 30 mm joint opening
- Standard Dowels available in 8mm and 12mm thickness
- Dowels can be provided as per customer requirement

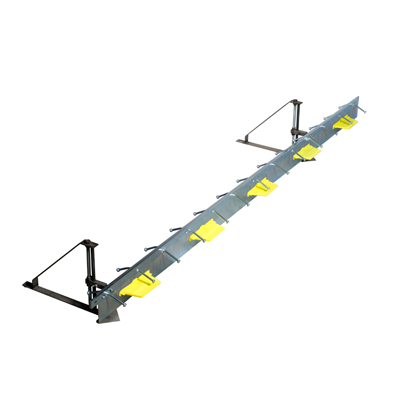

Height Fixing Jack:
Precision height adjustment jack is available which works with all types of Beton Steel Joints

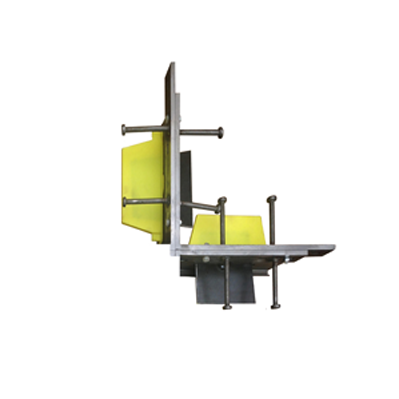

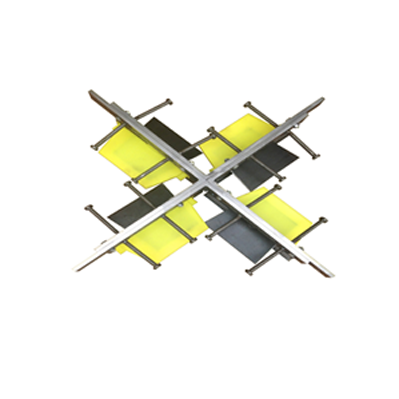

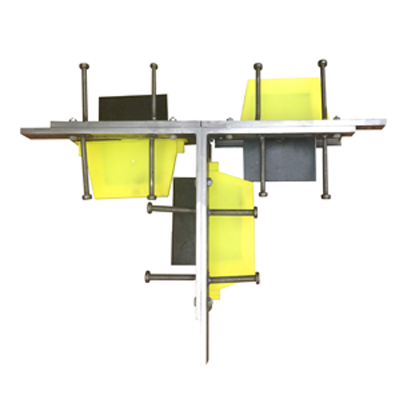

Junctions:
Applications:
- Suitable for various internal as well as external applications
- Ideal for internal and heavy applications in industrial buildings and waste transfer stations
- Suitable for areas where there is free movement
- Compatible with most vehicle types
- Suitable for larger joint openings, up to 30mm
